8.5 Foot Wide Trailers

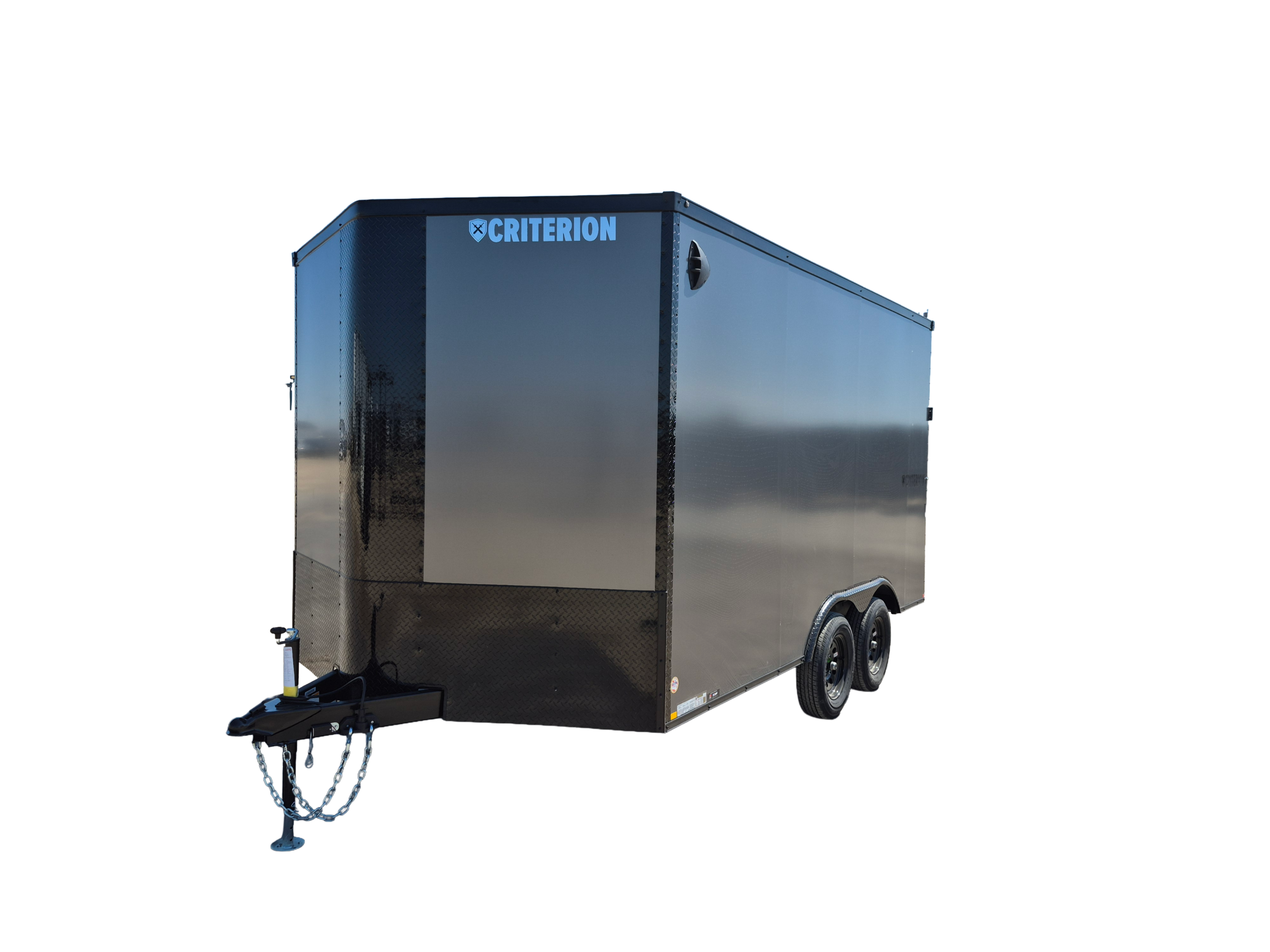

8.5' x 14'

Double (3.5 K or 5.2 K) Axle

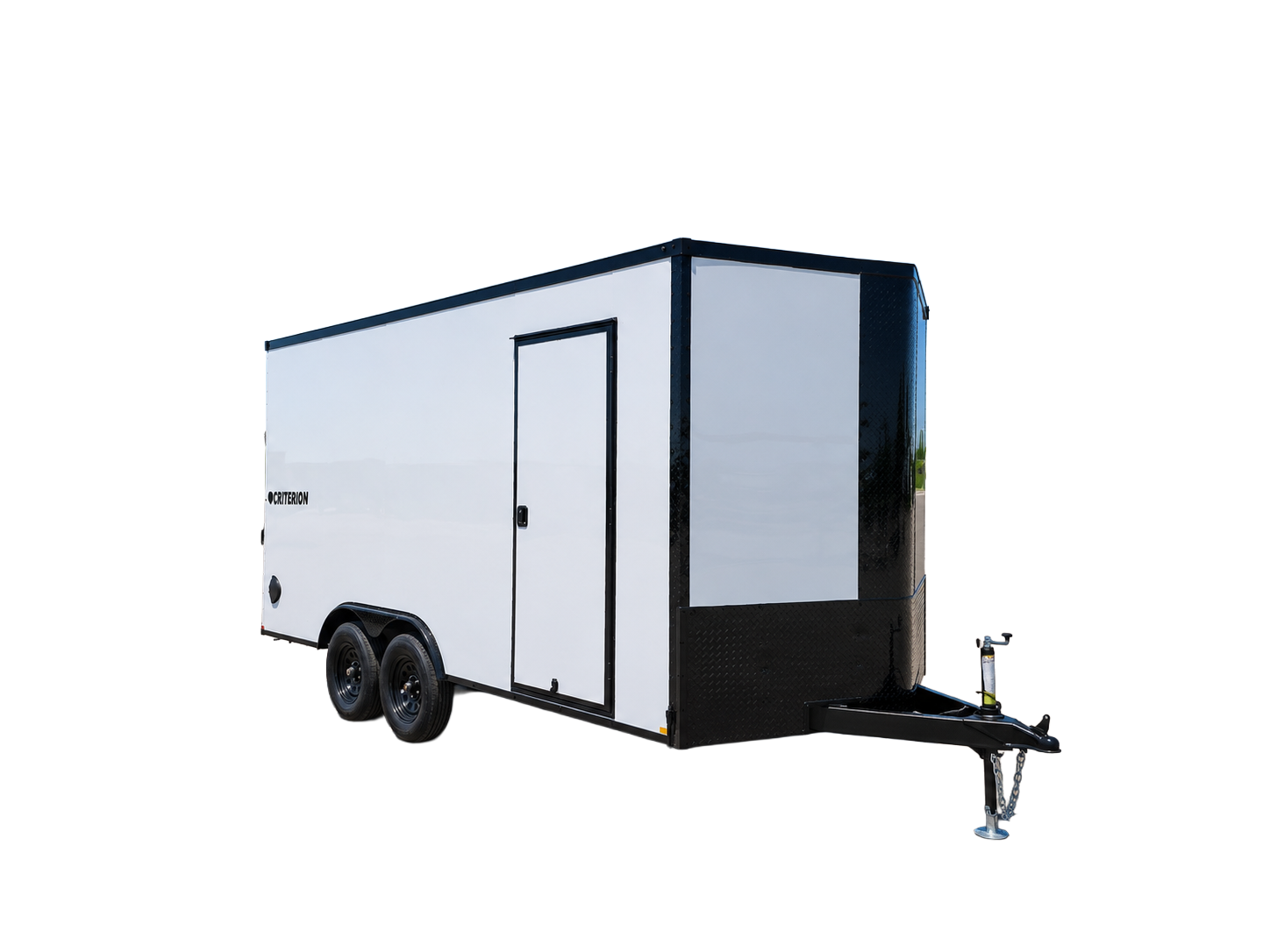

8.5' x 16'

Double (3.5 K or 5.2 K) Axle

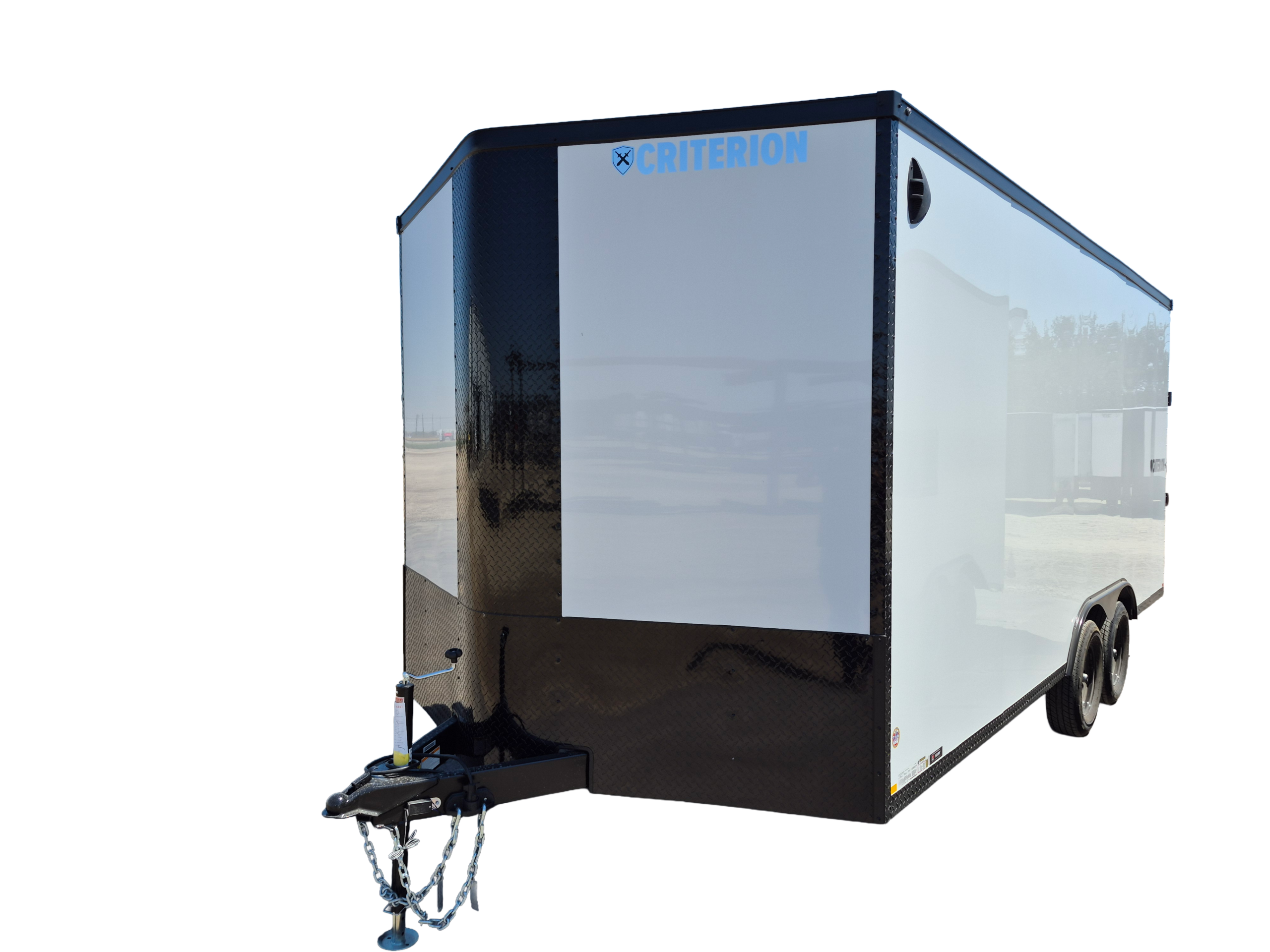

8.5" x 18'

Double (3.5 K or 5.2 K) Axle

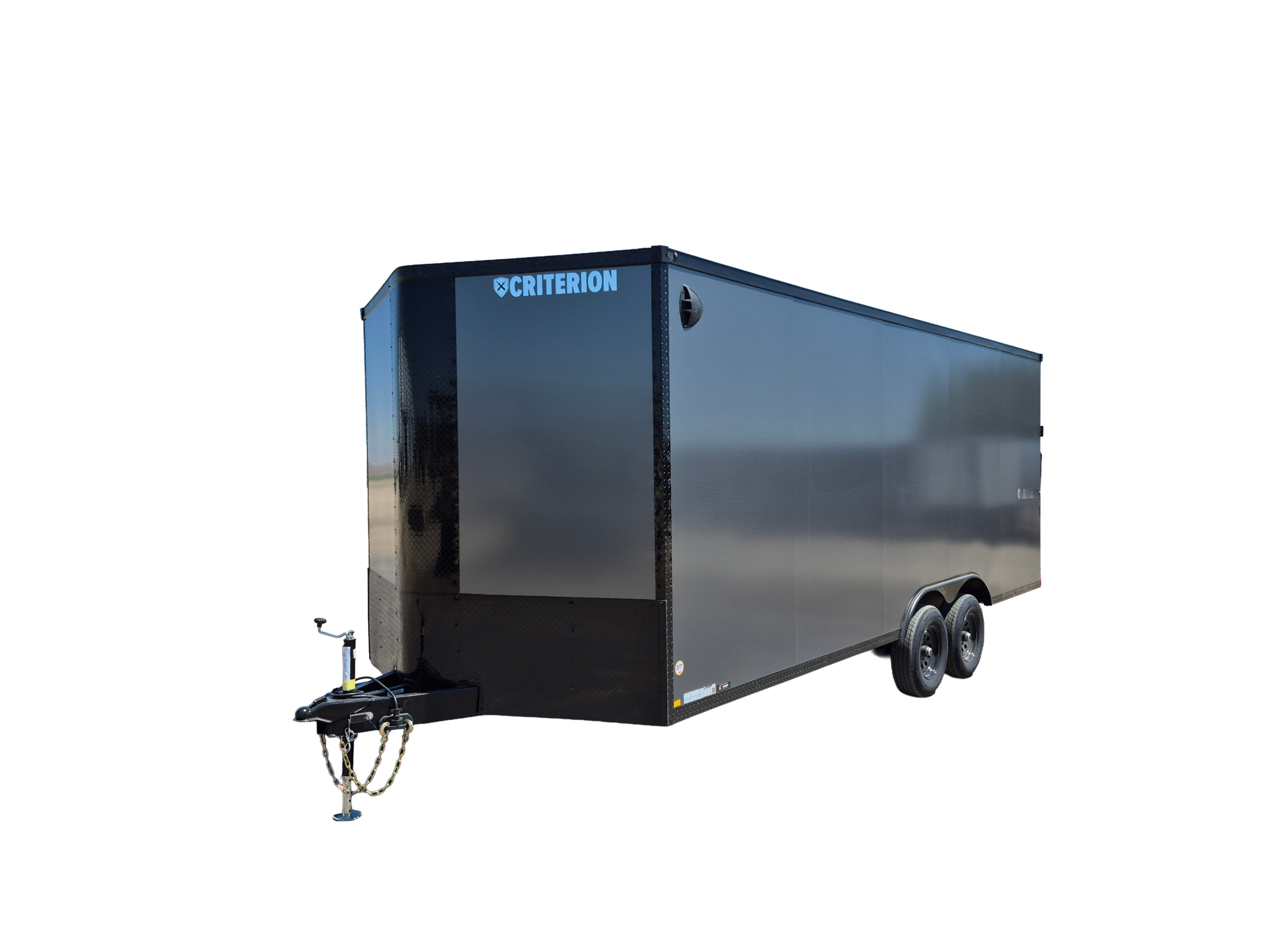

8.5' x 20'

Double (3.5 K or 5.2 K) Axle

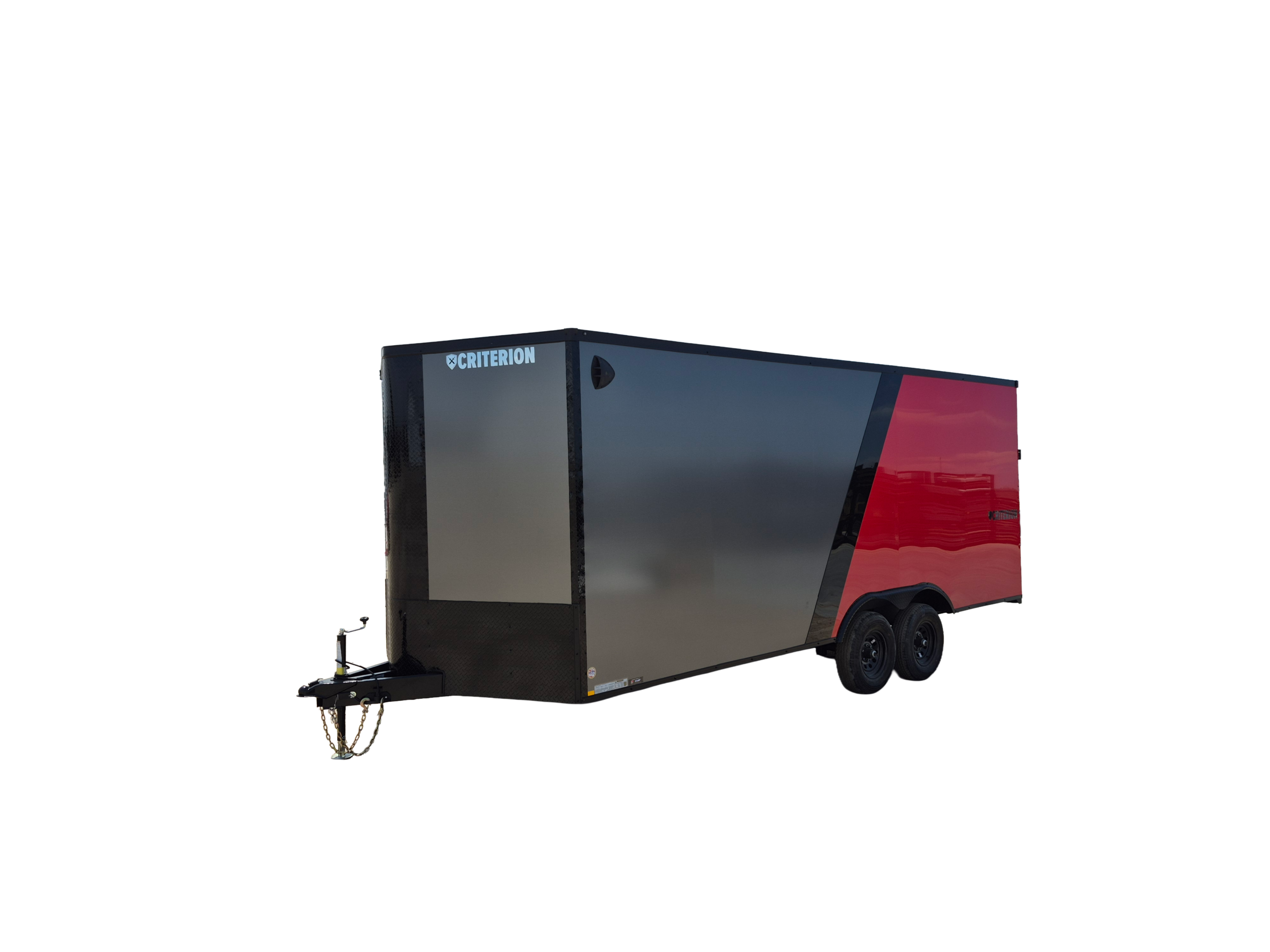

8.5' x 22'

Double (3.5 K or 5.2 K) Axle

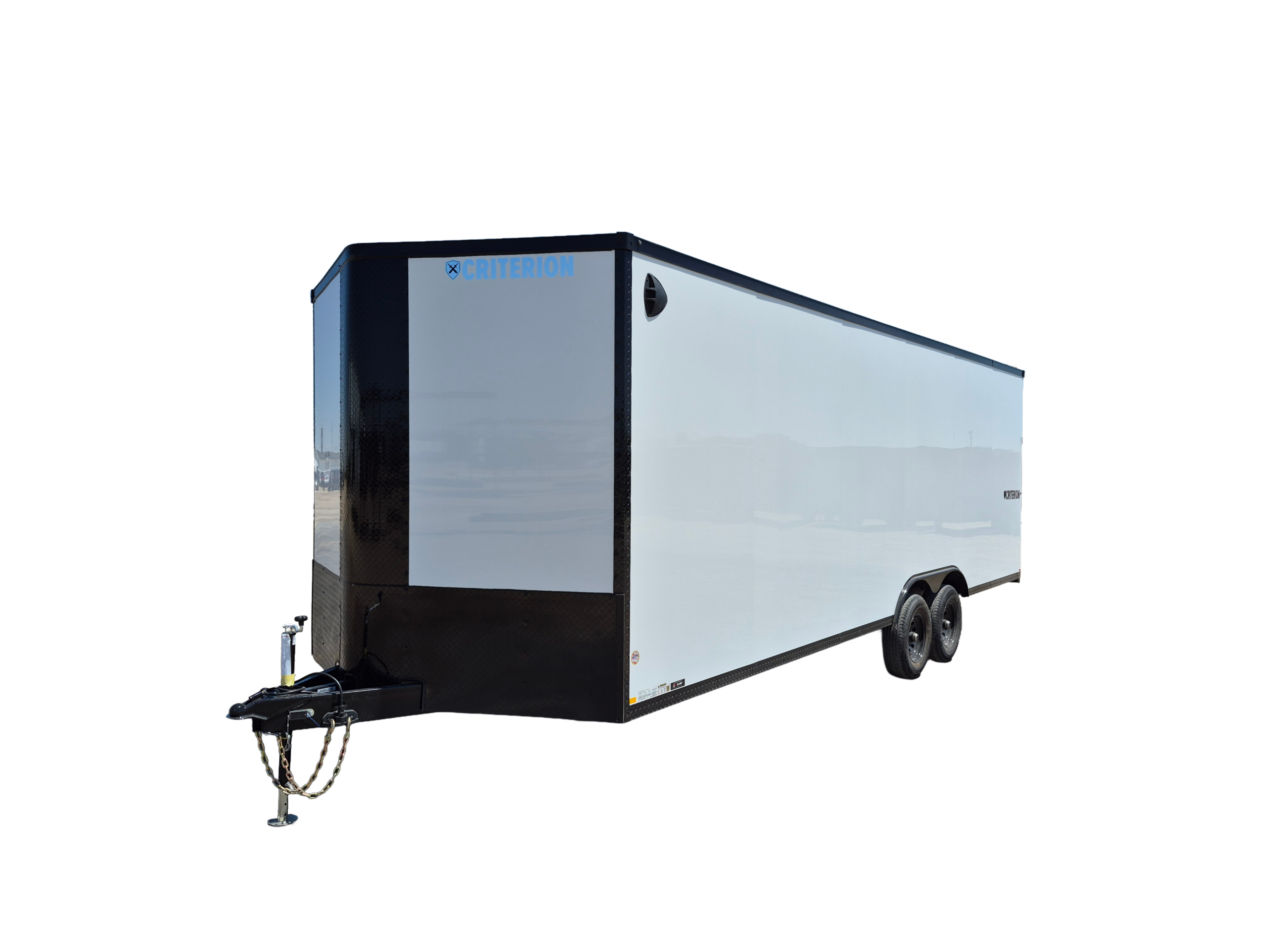

8.5' x 24'

Double (3.5 K or 5.2 K) Axle

8.5' x 26'

Double (3.5 K or 5.2 K) Axle

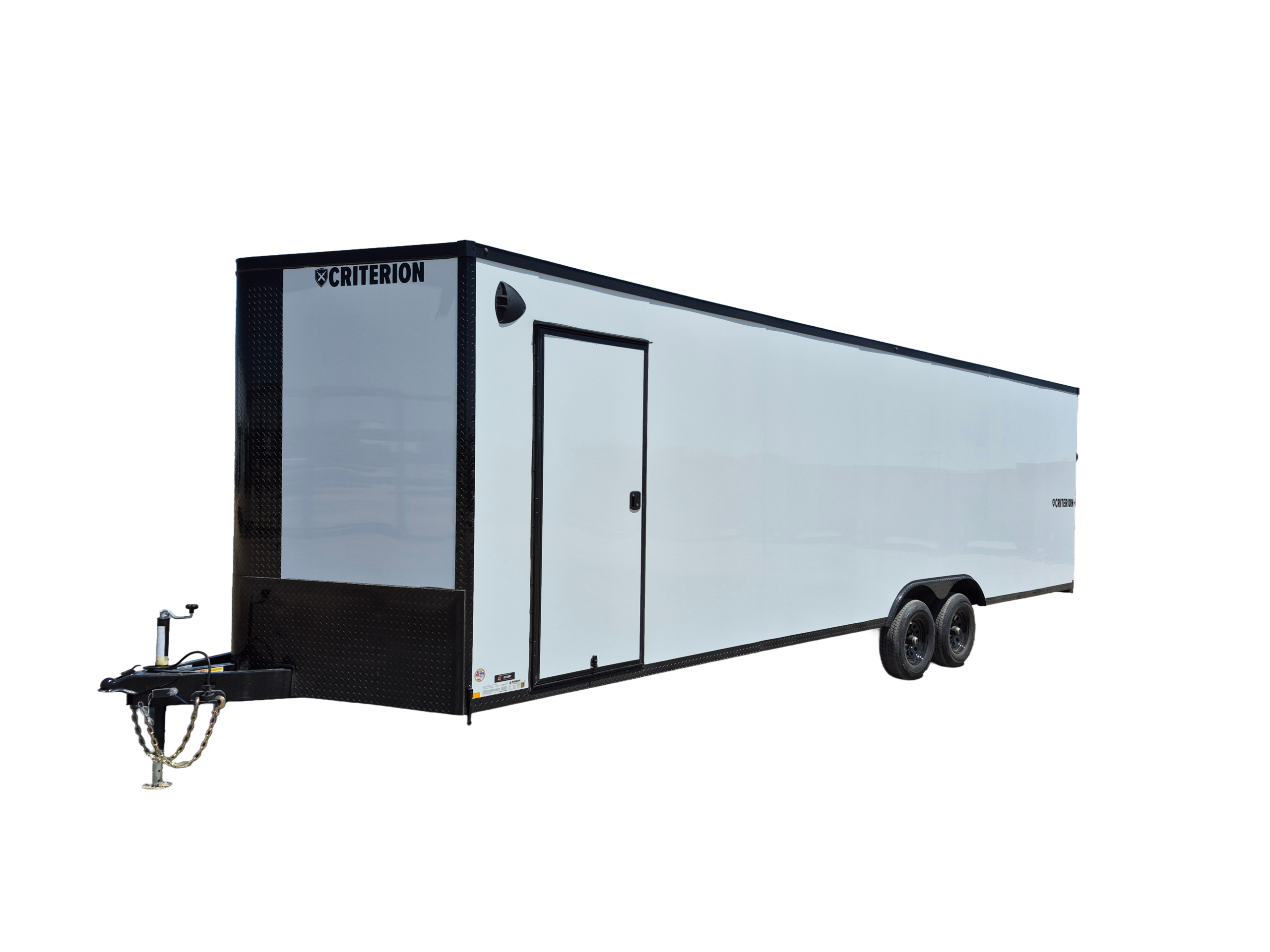

8.5' x 28'

Double (3.5 K or 5.2 K) Axle

8.5' x 30'

Double (3.5 K or 5.2 K) Axle

Standard Features
  • Airflow Vents (2) – Side Wall (Black)
  • Rear Double Door
  • Coupler – A-Frame 2″ Ball Size
  • Dome Light (1) – Oval LED
  • Roof Trim (Black)
  • Door Hold Backs – Aluminum
  • Screwless Exterior (.080) Composite Aluminum Siding
  • Floorboard – 3/4″ OSB StableDeck™
  • Stabilizer Jack (1) – Single Axle Trailers (Only)
  • Jack 5K w/ Drop Leg Sand Pad
  • Stone Guard 24″ (Black)
  • LED Trailer Lighting
  • Light Switch (1) – Wall Mount
  • Trailer Plug Organizer
  • Radial Tires W/ Modular Style Wheels (Black)
  • Wall Board – 3/8″ OSB StableWall™
  • Side Door 32″ RV Style
Popular Options & Upgrades
  • Drop Axle
  • Rear Ramp Door
  • Rear Ramp Door with Beaver Tail
  • D-Ring (Heavy-Duty) Recessed
  • Roof Vent (Non-Powered)
  • Torsion Style Axle (3.5 or 5.2 K)
  • Torsion Style Axle (7 K)
  • Spare Tire 205/75R15C on a Black Modular Wheel
  • Spare Tire Mount 5 Lug (Interior)
General Specifications for 6" I-Beam Trailers
Size 8′ x 14′ Double (3.5 K) 8′ x 16′ Double (3.5 K) 8′ x 18′ Double (3.5 K) 8′ x 20′ Double (3.5 K) 8′ x 22′ Double (3.5 K) 8′ x 24′ Double (3.5 K)
Overall Length 18′ 2″ 20′ 2″ 22′ 2″ 24′ 2″ 26′ 2″ 28′ 2″
Overall Width 102″ 102″ 102″ 102″ 102″ 102″
Overall Height 100″ 100″ 100″ 100″ 100″ 100″
Interior Length

188″

 212″ 236″ 260″ 284″ 308″
Interior Width 96″ 96″ 96″ 96″ 96″ 96″
Interior Height 84″ 84″ 84″ 84″ 84″ 84″
Deck Height 24″ 24″ 24″ 24″ 24″ 24″
Rear Opening Height 81″ 81″ 81″ 81″ 81″ 81″
Rear Opening Width 94″ 94″ 94″ 94″ 94″ 94″
Coupler Height 17″ 17″ 17″ 17″ 17″ 17″
Coupler Ball Size 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″
Brakes Electric Electric Electric Electric Electric Electric
GVWR 7,000# 7,000# 7,000# 7,000# 7,000# 7,000#
Tounge Weight
Curb Weight 2,600# 2,800# 2,920# 3,020# 3,290# 3,610#
Payload Capacity 4,400# 4,200# 4,080# 3,980# 3,710# 3,390#
Tires and Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels
Floor Material 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™
Sidewall Material 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™
Roof Material 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum
Skin Material Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080)
Stone Guard 24″ 24″ 24″ 24″ 24″ 24″
Trailer Lights LED LED LED LED LED LED
Floor Cross Memebers 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center
Sidewall Posts 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center
Roof Bows 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center
Axles Double – 3,500# Double – 3,500# Double – 3,500# Double – 3,500# Double – 3,500# Double – 3,500#
Hubs EZ-Lube EZ-Lube EZ-Lube EZ-Lube EZ-Lube EZ-Lube



General Specifications for 8" I-Beam Trailers



Size 8′ x 16′ Double (5.2 K) 8′ x 18′ Double (5.2 K) 8′ x 20′ Double (5.2 K) 8′ x 22′ Double (5.2 K) 8′ x 24′ Double (5.2 K) 8′ x 26′ Double (5.2 K) 8′ x 28′ Double (5.2 K)
Overall Length 20′ 2″ 22′ 2″ 24′ 2″ 26′ 2″ 28′ 2″ 30′ 2″ 32′ 2″
Overall Width 102″ 102″ 102″ 102″ 102″ 102″ 102″
Overall Height 100″ 100″ 100″ 100″ 100″ 100″ 100″
Interior Length 212″ 236″ 260″ 284″ 308″ 332″ 356″
Interior Width 96″ 96″ 96″ 96″ 96″ 96″ 96″
Interior Height 84″ 84″ 84″ 84″ 84″ 84″ 84″
Deck Height 24″ 24″ 24″ 24″ 24″ 24″ 24″
Rear Opening Height 81″ 81″ 81″ 81″ 81″ 81″ 81″
Rear Opening Width 94″ 94″ 94″ 94″ 94″ 94″

94″
Coupler Height 17″ 17″ 17″ 17″ 17″ 17″ 17″
Coupler Ball Size 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″ 2 5/16″
Brakes Electric Electric Electric Electric Electric Electric Electric
GVWR 9,999# 9,999# 9,999# 9,999# 9,999# 9,999# 9,999#
Tounge Weight
Curb Weight 2,900# 3,100# 3,310# 3,460# 3,710# 4,060# 4,410#
Payload Capacity 7,099# 6,899# 6,689# 6,539# 6,298# 5,939# 5,589#
Tires and Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels 15″ Tires on Black E-Coat Wheels
Floor Material 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™ 3/4″ OSB StableDeck™
Sidewall Material 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™ 3/8″ OSB StableWall™
Roof Material 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum 1 Piece Aluminum
Skin Material Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080) Composite Aluminum (.080)
Stone Guard 24″ 24″ 24″ 24″ 24″ 24″ 24″
Trailer Lights LED LED LED LED LED LED LED
Floor Cross Memebers 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center
Sidewall Posts 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center 16″ on center
Roof Bows 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center 24″ on center
Axles Double – 5,200# Double – 5,200# Double – 5,200# Double – 5,200# Double – 5,200# Double – 5,200# Double – 5,200#
Hubs EZ-Lube EZ-Lube EZ-Lube EZ-Lube EZ-Lube EZ-Lube EZ-Lube
